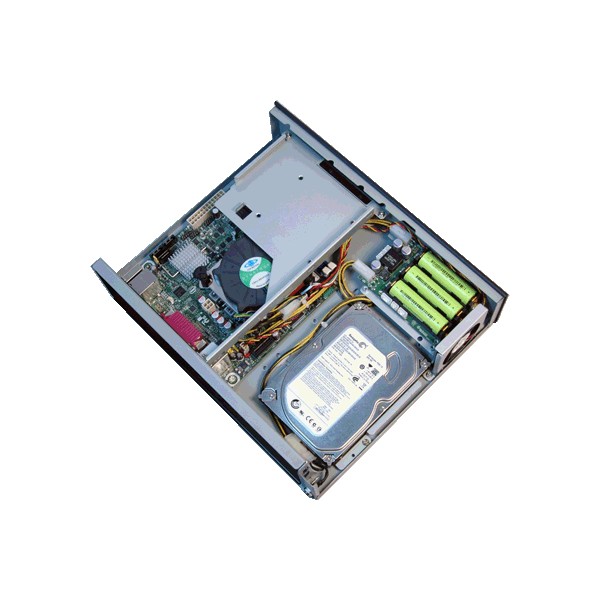

UPS137

Built-In Uninterrptible Power Supply(UPS) Mini-ITX Enlcosure

FEATURES

  • Built-In Uninterruptible Power Supply(UPS)
  • Designed with excellent heat dissipation, fanless operation capabilities, and multiple media configurations.
  • Perfect for home entertainment, disgital signage and other low profile applications

More details

3 other products in the same category:

    ** Case Specification **
    Form Factor :Mini-ITX
    Color :Black
    Dimension (W x L x H) :12.7" x 10" x 2.7" (322.58mm x 254mm x 68.58mm)
    Front Optical/CF Drive Bay :Optical Drive Bay
    Internal Drive Bay :1 x 3.5" OR 1 x 2.5"
    Cooling System :1 x 60mm Fan
    Compact Flash Slot :1 x CF Cutoff (Front)
    Expansion Slot :2
    I/O Shield :Standard I/O (Not Included)
    Extra Mounting Port :2 x RS232
    Mounting Option :Wall Mounting bracket; Vesa screws
    Additional Accessories :1 x PCI Extended Riser Card (included)
    ** Motherboard Specification **Generic MB specs, contact our OEM sales for details
    CPU :Intel or AMD
    Memory :Long DIMM or SoDimm
    Storage :2.5"/3.5" HDD or SSD
    Power Supply :60W/80W/120W/150W

System including Built-In UPS with Battery Backup Specifications:

  • Input Voltage: 12VDC standard (Optional 11 – 24VDC)
  • Output Voltage: 12VDC standard (Optional 12 – 24VDC)
  • Operating Temperature Range: -40C to 65C
  • Runtime: 30 minutes to 1 hour depending on load and type of batteries used.


15 Watt-Hours with 3pcs 3.2V LiFePO4 batteries
25 Watt-Hours with 3pcs 3.7V Li-Ion batteries (requires 13.5VDC input)

In Stock

Contact our Sales team for additional information on pricing, OEM solutions and system integration.
