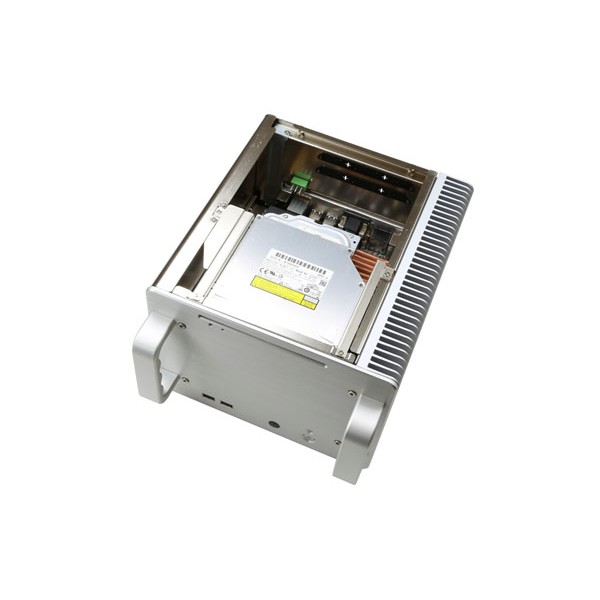

F545 View full size


Fanless Chassis for Mini-ITX(7" Height)


  • For Mini-ITX motherboard with CPU TDP 65W Max.
  • Adjustable heat pipe solution provides excellent compatibility
  • 4 x DB9 ports on rear I/O
  • Support 3 x expansion slot
  • Support 1 x 2.5" and 1 x 3.5" HDD
  • Support Slim ODD and with IR receiver(optional)

More details

30 other products in the same category:

    Form Factor :Mini-ITX
    Material :SPCC with anodized aluminum panel
    Finish :Black wet paint textured coat
    Color :Black. Customizable colour.
    Dimension (W x L x H) :9.57" x:10.55" x 6.89"(243.0mm x 268.0mm x 175mm)
    Front LED Indicator :1 x Activity; 1 x Power
    Front USB Port : 2
    Front Power Switch : 1
    Front Optical/CF Drive Bay :Optical Drive Bay
    Memory Height :Accepts standard size
    Internal Drive Bay :1 x 3.5" OR 1 x 2.5"
    Cooling System :Adjustable heat pipe solution
    Expansion Slot :3
    I/O Shield :Standard I/O (Not Included)
    DB9 Cutoff Hole :4
    Mainboards :1 x Mini-ITX
    Power Supply :DC Solutions
    External Adapter Input :AC 100V - 240V
    External Adapter Output :DC 12V @ 5A(60W) / 6.6(80W) / 10A(120W)

Made to Order

Contact our Sales team for additional information on availability, OEM solutions, and system integration.
