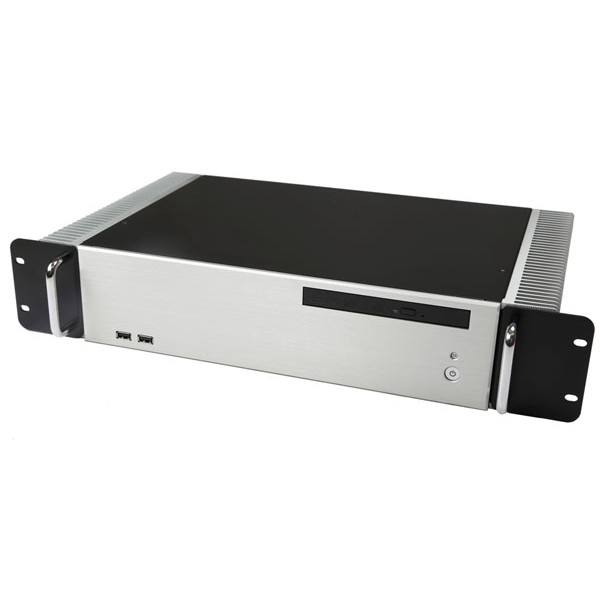

F2300
2U Rackmount Fanless Chassis for Micro-ATX
FEATURES
- For Micro-ATX motherboard with CPU TDP 35W Max.
- Adjustable heat pipe solution provides excellent compatibility
- Support 3 x expansion slot
- Support Slim ODD
2U Rackmount Fanless Chassis for Micro-ATX
FEATURES
Form Factor : | Micro-ATX |
---|---|
Material : | SPCC with anodized aluminum panel |
Finish : | Black wet paint textured coat |
Color : | Black. Customizable colour. |
Dimension (W x L x H) : | 19" x:10.5" x 3.46"(481.80mm x 267.55mm x 88mm) |
Front LED Indicator : | 1 x Activity; 1 x Power |
Front USB Port : | 2 |
Front Power Switch : | 1 |
Front Optical/CF Drive Bay : | 1 |
Memory Height : | Accepts standard size |
Internal Drive Bay : | 1 x 2.5" HDD |
Cooling System : | Adjustable heat pipe solution |
Expansion Slot : | 3 |
I/O Shield : | Standard I/O (Not Included) |
Mainboards : | 1 x Mirco-ATX |
Power Supply : | DC Solutions |
External Adapter Input : | AC 100V - 240V |
External Adapter Output : | DC 12V @ 5A(60W) / 6.6(80W) / 10A(120W) |
Made to Order
Contact our Sales team for additional information on availability, OEM solutions, and system integration.
