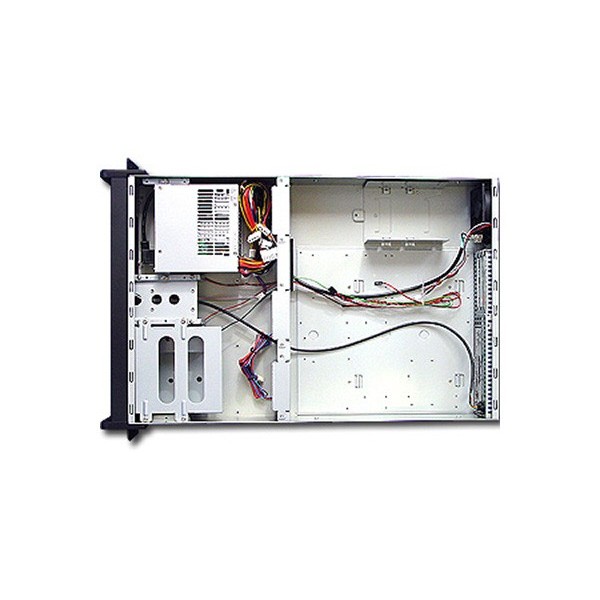

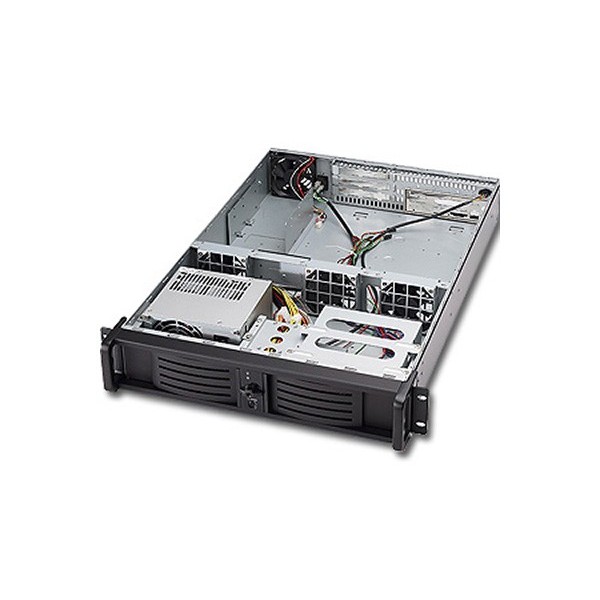

Eagle 2260
2U Rackmount chasis for ATX/ Micro-ATX systems
FEATURES
- Eagle 2U rackmount designed for ATX / Micro-ATX boards
- Supports: 4 device drive bays, 3 x PCI expansion slots
- Available with Black & Gold doors
2U Rackmount chasis for ATX/ Micro-ATX systems
FEATURES
Form Factor : | ATX |
---|---|
Material : | Heavy duty cold-rolled steel |
Finish : | Black wet paint textured coat |
Color : | Black with Black/Gold Doors |
Dimension (W x L x H) : | 19" x 26" x 3.46" (482.6mm x 660mm x 88mm) |
Front LED Indicator : | 1 x Activity; 1 x Power |
Memory Height : | Accepts standard size |
Internal Drive Bay : | 2 x 3.5" |
External Drive Bay : | 2 x 3.5", 2 x 5.25" |
Cooling System : | 3 x 80mm and 1 x 80mm (rear) fan |
Expansion Slot : | 3 x PCI |
Extra Mounting Port : | 2 x SCSI ports |
Mounting Option : | Optional sliding rail, rear/center mount brackets |
Weight : | 30 lbs |
Mainboards : | ATX or Micro-ATX |
Power Supply : | PSII 300W/400W/500W/600W |
Special Order
Contact our Sales team for additional information on lead time, availability, OEM solutions, and system integration.
