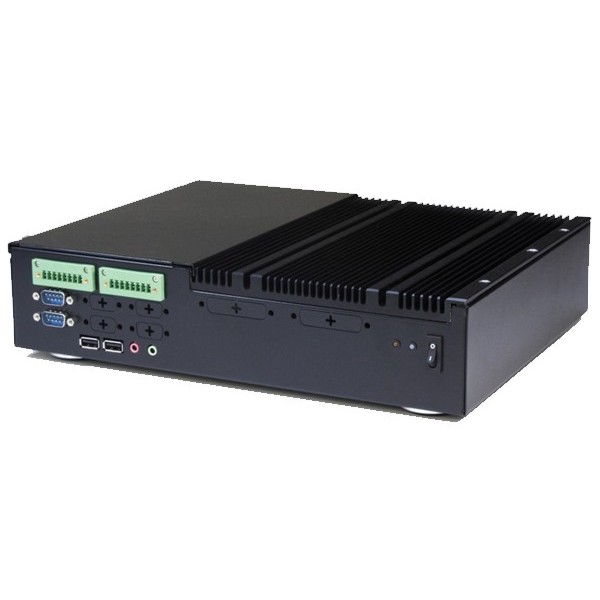

Fanless chassis for Mini-ITX motherboard
FEATURES
| Form Factor : | Mini-ITX |
|---|---|
| Material : | Zinc-Fe Alloy Sheet |
| Finish : | Black wet paint textured coat |
| Color : | Black / Customizable |
| Dimension (W x L x H) : | 12.24" x 9.43" x 2.72" (310.9mm x 239.6mm x 69mm) |
| Front LED Indicator : | 1 x Activity; 1 x Power |
| Front USB Port : | 2 |
| Front Power Switch : | 1 |
| Front Audio In/Out : | 2 x 3.5mm |
| Memory Height : | Accepts standard size |
| Internal Drive Bay : | 1 x 3.5" OR 1 x 2.5" |
| Cooling System : | Aluminum Top Cover Heat Sink |
| Expansion Slot : | 2 x PCI/PCIe |
| I/O Shield : | Standard I/O (Not Included) |
| Extra Mounting Port : | 6 x Serial Port |
| Weight : | 8 lbs |
| Mainboards : | 1 x Mini-ITX |
| DC Jack : | 1 |
| Terminal Block : | 2 |
| Parallel Port : | 2 |
| Power Supply : | DC Solutions |
| External Adapter Input : | AC 100V - 240V |
| External Adapter Output : | DC 12V @ 5A(60W) / 6.6(80W) / 10A(120W) |
Made to Order
Contact our Sales team for additional information on availability, OEM solutions, and system integration.
